The Ultimate Big Crazy Wifi Antenna Guide
A handbook for Wifi antenna construction signal boosting.

Presented here is a versatile, durable, and rather unique wifi extender antenna that can greatly increase your wireless networking range and speed. When built with ten or more turns, this helical wifi antenna vastly outperforms the cantennas and wi fi wok tops often seen on the internet. A short five turn helical makes a very good feeder for a wifi parabolic dish antenna. A special quality of this antenna is that it radiates and receives a circularly polarized signal. It does not favor vertically or horizontally polarized signals. Thus, this antenna works well with wifi signals reflecting off of buildings, moving vehicles, or antennas oriented at odd angles. Circularly polarized signals are less affected by rain, so you can reach distant access points in stormy weather. There is a 3 dB loss of gain when using this antenna with linearly polarized signals, but the difference is more than made up by making the antenna long - at least ten turns for stand-alone usage. It absolutely beats everything but a yagi of similar length.

Be aware that if your goal is to get wireless internet from another location and use it indoors, you should instead consider using a wireless bridge. If you want to provde strong wireless internet coverage to an area, but cannot provide a fiber optic or ethernet cable to your wireless router, again consider using a wireless bridge to substitute for the unavailable cable, and connect the bridge to the router.

Design parameters for this helical wifi antenna were calculated using the online helical antenna calculator and was inspired by similar designs used for the AMSAT OSCAR 40 satellite.


  1. one square piece of copper sheet metal or single sided PC board for a ground plane.
  2. one PVC kitchen drain tailpiece (3.8 cm / 1.5" diameter) to hold the helical windings
  3. six 1/8" plastic cable ties
  4. a length of copper circuit tape (adhesive backed, width 3mm or 1/8") or #14 copper wire
  5. one suitable chassis connector (I used a reverse sma type matching the connector on my adaptor)
  6. one 90 degree angle bracket with screws and bolts to fit


  1. Center the tailpiece on the PC board, copper side, and mark the circumference in ink.
  2. Mark four locations on the circumference, spaced 90 degrees, where the cable ties will hold down the PVC tube.
  3. Mark one location on the circumference, exactly between two 90 degree markings, where the coaxial connector will be mounted.

heical wifi Antenna, parabolic wifi antenna

At this point you should have a PC board with a circle in the center, four tick marks on the circle at 90 deg intervals, and one tick mark exactly between two others.

  1. Drill 1/8" holes on the inside and outside of the circumference at the cable tie locations.
  2. Drill a hole directly on the circumference suitable for the chassis connector. Carefully measure and drill other holes for this connector if necessary.
  3. Drill four holes, spaced 90 deg apart near the bottom end of the PVC tailpiece.
  4. Drill holes to accomodate a small 90 degree corner bracket.
  5. Drill holes on opposite side of board to accomodate USB wifi adapter that will be affixed with cable ties.
  6. Tin the copper around the connector mounting hole, then mount the connector. Clip the center pin to keep it only long enough for connection to the helix windings.
  7. Cut out a notch to accomodate the connector; it should clear center conductor, but avoud cutting out excess PVC material.
  8. Feed cable ties through from the back side of the board, through holes in the tube, and back through the board. Tighten the cable ties, making sure the tube is firmly held to the copper ground plane.
  9. Use a ruler and the edge of a sheet of paper to create a template for positioning the windings on the PVC tube. Distance zero represents the ground plane, then add the feedpoint distance, then ticks matching the turns spacing. Use the template to mark your tube on both the feedpoint side and the opposite side.

  10. The objective is to precisely wind the helical wifi antenna using an accurate guide...

heical wifi Antenna, parabolic wifi antenna
Space the turns 2.5 cm on a
tube of 3.9cm outer diameter.

Here is a table used for my prototype helical wifi antenna and its connector. Note that turn 1 starts at 0.8 cm (height above ground plane of feedpoint). Turns Spacing is 2.5 cm, and the diameter is 3.9 cm (close enough for 1.5" PVC tailpiece). If your connector can be trimmed to allow a feed connection closer to the ground plane than 0.8CM, then simply run the helix as low as necessary. Most impartant is keeping the proper spacing between turns.

(fits 1.5" PVC tailpiece)
Turn # Height (cm) above
Half Turns
Height (cm)
1 (feedpoint) 0.8 2.05
2 3.3 4.55
3 5.8 7.05
4 8.3 9.55
5 10.8 12.05
6 13.3 14.55
7 15.8 17.05
8 18.3 19.55
9 20.8 22.05
10 23.3 24.55
11 25.8 27.05
12 28.3 29.55
13 30.8 32.05

  1. Carefully wind the helix, using circuit tape or wire, then solder to center conductor of chassis connector. Double check against the turns template. Polarization will be right-handed if the turns spiral clockwise (looking outward from feedpoint).

high gain heical wifi Antenna, high gain parabolic wifi antenna, wifi dish

  1. Attach the angle bracket and wifi adapter, making sure all parts are secure and ready for service, as seen in the images below.

high gain heical wifi Antenna, high gain parabolic wifi antenna,  wifi dish
The high gain wifi helical antenna.
10 turn stand alone version

high gain heical wifi Antenna, high gain parabolic wifi antenna,  wifi dish

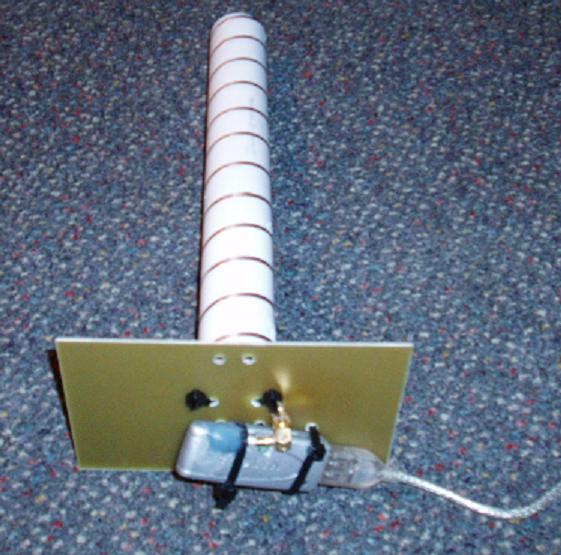

Cable losses avoided by
mounting wifi adapter
at base of antenna.

high gain heical wifi Antenna, high gain parabolic wifi antenna,  wifi dish
Short wifi helix feeding a long range parabolic wifi

At this point, helical wifi antenna is ready for its smoke test...plug in the cables and look for some signals! Theoretical gain of the prototype helical was about 18 dB over an isotropic radiator; it beat my biquad by about 7 to 13 RSSI units, and indeed seemed less sensitive to polarization and rainfall. Signals still seem to fluctuate much from second to second. If your antenna is functioning satisfactorily at this point, I suggest spray painting three layers of clearcoat onto the windings and groundplane for stability and corrosion prevention.
